BRASS
FITTINGS

To play, press and hold the enter key. To stop, release the enter key.

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

HEX NIPPLE

REDUCING NIPPLE

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

REDUCING BUSHING

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438
(1) SAE DOES NOT PROVIDE A STANDARD FOR THESE SIZES

FEMALE TO MALE ADAPTER

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

COUPLING

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

REDUCING COUPLING

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

90° ELBOW

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

90° STREET ELBOW

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

45° ELBOW

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

45°STREET ELBOW

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

FEMALE TEE

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

BRANCH TEE

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

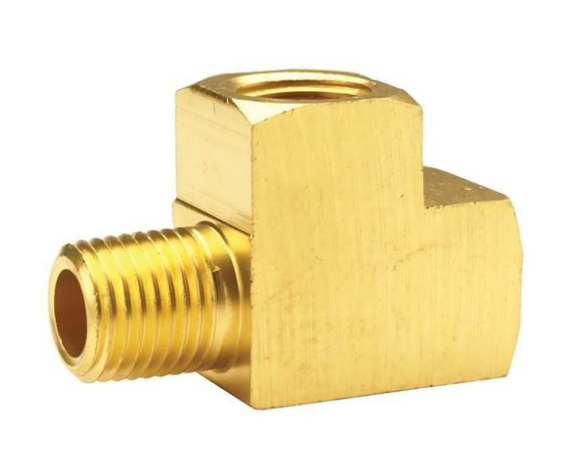

STREET TEE

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

FEMALE CROSS

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 1000 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

SQUARE HEAD PLUG

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 300PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

PIPE CAP

Specifications
• Working pressure and temperature range -65°F to 250°F
(-53°C to 126°C) at 150 PSI
• Vacuum: Not rated
Approvals
• Meets functional requirements of SAE J530, J531
• Reference: 130137, 130138, 130139, 130140,130238, 130239,
130339, 130424, 30425, 130438

BARB X MNPT

Specifications
Working pressure: 250 PSI maximum @ 72°F (22°C) (except 103 and 105-series1 rated to 80 PSI operational performance)
Operating temperature range: -40°F to 160°F (-40°C to 71°C) at 150 PSI maximum
Vacuum: not rated

BARB X BARB

Specifications
Working pressure: 250 PSI maximum @ 72°F (22°C) (except 103 and 105-series1 rated to 80 PSI operational performance)
Operating temperature range: -40°F to 160°F (-40°C to 71°C) at 150 PSI maximum
Vacuum: not rated

BARB ELBOW

Specifications
Working pressure: 250 PSI maximum @ 72°F (22°C) (except 103 and 105-series1 rated to 80 PSI operational performance)
Operating temperature range: -40°F to 160°F (-40°C to 71°C) at 150 PSI maximum
Vacuum: not rated

BARB TEE

Specifications
Working pressure: 250 PSI maximum @ 72°F (22°C) (except 103 and 105-series1 rated to 80 PSI operational performance)
Operating temperature range: -40°F to 160°F (-40°C to 71°C) at 150 PSI maximum
Vacuum: not rated

BARB X MNPT
ELBOW

Specifications
Working pressure: 250 PSI maximum @ 72°F (22°C) (except 103 and 105-series1 rated to 80 PSI operational performance)
Operating temperature range: -40°F to 160°F (-40°C to 71°C) at 150 PSI maximum
Vacuum: not rated

BARB X FEMALE SWIVEL

Specifications
Working pressure: 250 PSI maximum @ 72°F (22°C) (except 103 and 105-series1 rated to 80 PSI operational performance)
Operating temperature range: -40°F to 160°F (-40°C to 71°C) at 150 PSI maximum
Vacuum: not rated

PUSH ON BARB X FEMALE SWIVEL

Application

Intended for use with Lok-on push-on style hose only

DUAL SEAT
45°SAE / 37°JIC

Features

No hose clamps or ferrules are needed for installation
Properly grips push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap

Specifications
Working pressure: 350 PSI
Operating temperature range: -40°F to 150°F (-40°C to 65°C)
Vacuum: not rated

PUSH ON BARB X FEMALE SWIVEL

Application

Intended for use with Lok-on push-on style hose only

37° JIC

Features

No hose clamps or ferrules are needed for installation
Properly grips push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap

Specifications
Working pressure: 350 PSI
Operating temperature range: -40°F to 150°F (-40°C to 65°C)
Vacuum: not rated

PUSH ON BARB X MNPT

Application

Intended for use with Lok-on push-on style hose only

Features

No hose clamps or ferrules are needed for installation
Properly grips push-on hose only when pushed all the way in, with the cut end of the hose completely concealed by the plastic cap

Specifications
Working pressure: 350 PSI
Operating temperature range: -40°F to 150°F (-40°C to 65°C)
Vacuum: not rated

GHT COMPLETE
SET

Specifications
Temperature rating: 34°F to 195°F
Pressure rating: 150 PSI maximum
Compliances
FED-STD-H28/10 NH, NPSH
SAE J530, NPT, NPTF

FGHT X FNPT

Specifications
Temperature rating: 34°F to 195°F
Pressure rating: 150 PSI maximum
Compliances
FED-STD-H28/10 NH, NPSH
SAE J530, NPT, NPTF

FGHT X MNPT

Specifications
Temperature rating: 34°F to 195°F
Pressure rating: 150 PSI maximum
Compliances
FED-STD-H28/10 NH, NPSH
SAE J530, NPT, NPTF

MGHT X MNPT

Specifications
Temperature rating: 34°F to 195°F
Pressure rating: 150 PSI maximum
Compliances
FED-STD-H28/10 NH, NPSH
SAE J530, NPT, NPTF

Other configurations are available

MALE HEX NIPPLE

Specifications
Pressure rating: 175 PSI maximum
Compliances
FED-STD-H28/10 NH, NPSH
SAE J530, NPT, NPTF

FEMALE X MALE

PIN LUG

Hex

Specifications
Pressure rating: 175 PSI maximum
Compliances
FED-STD-H28/10 NH, NPSH
SAE J530, NPT, NPTF

FEMALE X FEMALE

Specifications
Pressure rating: 175 PSI maximum
Compliances
FED-STD-H28/10 NH, NPSH
SAE J530, NPT, NPTF

FEMALE X FEMALE SWIVEL

Specifications
Pressure rating: 175 PSI maximum
Compliances
FED-STD-H28/10 NH, NPSH
SAE J530, NPT, NPTF

ROCKER LUG

PIN LUG
